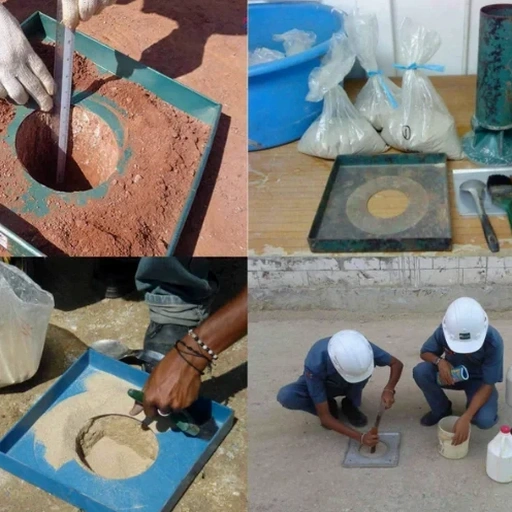

A calibrated sand cone apparatus is a beautifully simple piece of kit: a glass or plastic jar filled with uniform, clean Ottawa sand, a precision-machined cone valve, and a sturdy metal base plate. When we set it up on a freshly compacted lift in Whanganui, say on a residential subdivision cut into the old marine terraces near St John's Hill, the goal is brutally practical. Did the roller achieve the required 98% modified Proctor? The method hasn't changed much since the mid-20th century, but executing it properly on the silty volcanic loams common across the city—where a gust of wind or a poorly seated base plate can ruin a reading—demands a technician who’s seen a few hundred tests. In our experience, the Whanganui climate adds its own twist: morning dew on the flexible rigid pavement subgrade can throw off moisture correlation, so timing matters as much as technique.
A sand cone test gives you one number that the whole earthworks crew understands: the percent compaction. No ambiguity, no modeling—just a hole, some sand, and a scale.
Process and scope
Whanganui’s development pattern, spreading from the historic Durie Hill area across the river flats and up onto the Papa mudstone hill country, has created a patchwork of fill materials. Much of the urban expansion from the 1960s onwards involved cutting and filling on slopes that are gentle enough to build on but steep enough to slide if the fill isn’t locked in tight. The sand cone test becomes the project’s truth-teller at this stage. We compare the in-place density directly against the laboratory maximum dry density, typically derived from NZS 4402 methods, and deliver an unambiguous pass or fail. It works equally well for granular roading aggregate along State Highway 4 as for cohesive fill behind a new retaining structure. The method’s strength is its direct physical measurement: you excavate, weigh, and replace with a known sand volume. No nuclear gauges, no calibration curves that drift. For a city the size of Whanganui, where projects range from single-lot foundations to council stormwater upgrades, that simplicity is a genuine asset.
Quick answers
How many sand cone tests do I need for my Whanganui property?
For a standard residential lot with engineered fill, Whanganui District Council typically asks for one test per lift per 150 m², or a minimum of three tests per placed layer. The exact frequency depends on the variability of the fill material. On larger commercial sites, we follow NZS 4431 guidance and adjust frequency based on the consistency of the results as the job progresses.
What does a field density test cost in Whanganui?
For a standard sand cone density test on a residential or light commercial site in Whanganui, you can expect to budget between NZ$170 and NZ$260 per test point, depending on the number of tests per visit and travel distance. A full-day rate with multiple points and a lab compaction curve included provides better value for larger earthworks packages.
Can you test density in coarse gravel or scoria fill with the sand cone?
The sand cone method works well up to about 20 mm maximum particle size. For coarser material, like the river gravels sometimes used as drainage fill near Castlecliff, we switch to a water replacement method or a large-scale test pit density measurement. We’ll advise the right technique after seeing the material’s grading curve.
